Linux Firewall: iptables

Tables comprise of Chains. Chains are lists of rules (followed in order). You will mostly be working with either default table called “filter” or NAT/portforwarding table called “nat”

To see the current rules:

iptables -nvL

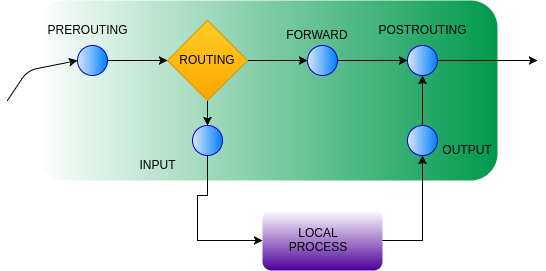

INPUT, FORWARD, and OUTPUT are 3 of the 5 chains. A packet goes through only ONE of the 3 chains. Input means packet coming from network interface to local process. OUTPUT means going from local process to outside world (via network interface). FORWARD chain is for packets that are being routed (packets passing through your box; i.e., they are comming from outside and are going outside).

Other 2 chains are PREROUTING and POSTROUTING. As the name implies they are touched before and after a routing decision has been made. PREROUTING just after arrival of the packet on machine interface. POSTROUTING at the end (after routing/FORWARDing or OUTPUT are evaluated).

MASQUERADE is form/type of source nat (SNAT) suitable for dynamic outgoing/public addresses. MASQUERADE is used when you do not know which address will be the outgoing IP (for outside world/lan) for example, in case the you are connecting with dynamically allocated IP from your ISP. With Link-Down/Up the MASQUERADE ip address is automatically re-determined. If you have statically allocated public IP, then you should use SNAT.

DNAT is mostly used for Port Forwarding where you want packets arriving at router to be delivered to inside LAN network/machine.

REJECT or DROP

While testing you should use REJECT instead of DROP. Also, all rules for connections inside your LAN should use REJECT so that other-end knows that the port in question is unavailable. For outside/internet connectios, it is better to use (with the exception of ident on certain servers) use DROP.

Examples:

In a typical setup where Tomcat Server is serving web application, you want to close all ports except 8080 and SSH port 22.
A typical ruleset will be like:

iptables -F
iptables -X
iptables -P INPUT DROP
iptables -P FORWARD DROP
iptables -P OUTPUT ACCEPT
iptables -t nat -F
iptables -t mangle -F
iptables -A INPUT -s 127.0.0.1 -j ACCEPT
iptables -A INPUT -p icmp --icmp-type echo-request -j ACCEPT
iptables -A OUTPUT -p icmp --icmp-type echo-reply -j ACCEPT
iptables -I INPUT -p tcp --dport 22 -m state --state NEW,ESTABLISHED -j ACCEPT
iptables -I INPUT -p tcp --dport 8080 -m state --state NEW,ESTABLISHED -j ACCEPT
iptables -A INPUT -m conntrack --ctstate ESTABLISHED,RELATED -j ACCEPT
service iptables save

If you are running web server and dns server on the same machine, you need to add below rules before contrack rule

iptables -I INPUT -p tcp --dport 80 -j ACCEPT
iptables -I INPUT -p udp --dport 53 -j ACCEPT
iptables -I INPUT -p tcp --dport 53 -j ACCEPT
